PETALOT
| Qty | Image | Component | Link | Price |
|---|---|---|---|---|
| 18 |  |
Screw M2.3 x 20mm (union between Large Gear and Pulley) |
View on AliExpress | 1.75 € (50 pcs) |
| 2 | |
Screw M2 x 12mm (fix PCB to wood base) |
View on AliExpress | 1.28 € (50 pcs) |
| 3 |  |
Screw M4 x 35mm (central wooden block and Angle Bracket) |
View on AliExpress | 2.94 € (30 pcs) |
| 14 | |

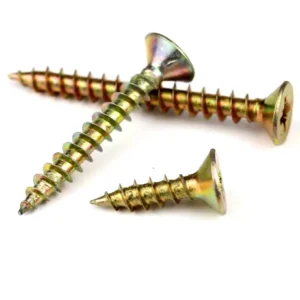

Screw M3 x 20mm (to screw the different parts to the wood base) |
View on AliExpress | 2.04 € (30 pcs) |
| 1 |  |

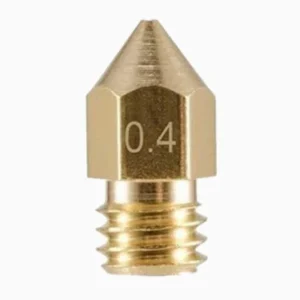

V6 Stainless steel nozzle 0.4 mm |
View on AliExpress | 0.26 € |
| 4 |  |

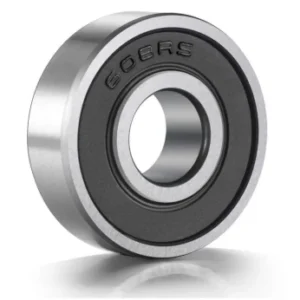

Bearing 8x22x7 mm 608RS |
View on AliExpress | 3.69 € (10 pcs) |
| 1 |  |

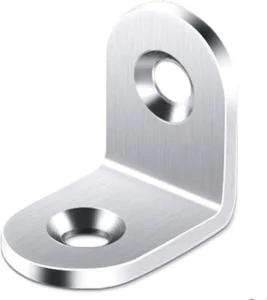

90 Degree Angle Bracket 20x20mm |
View on AliExpress | 2.69 € (10 pcs) |
| 2 |  |
M8x110mm Threaded Rod (I use rod thereaded cut to 10.5cm) |
View on AliExpress | 6.78 € |
| 4 |  |

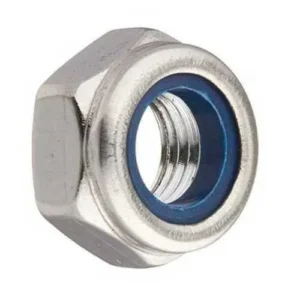

M8 Hex Nylon Insert Lock Nut Self-locking Locknut |
View on AliExpress | 3.39 € (20 pcs) |
| 3 |  |

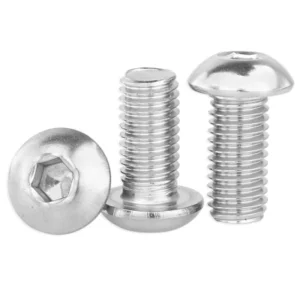

Screw M3 8mm for the motor gear, electronic box and motor mount |
View on AliExpress | 1.94 € (50 pcs) |
| 1 |  |

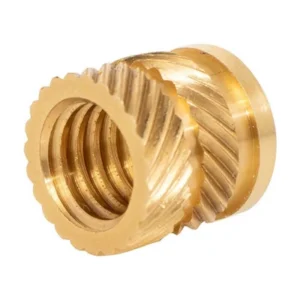

M3 nut for the motor gear |
View on AliExpress | 3.49 € (200 pcs) |
| 2 |  |

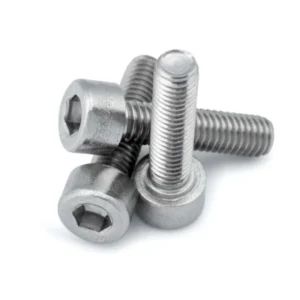

M3 14mm bolt for motor mount |
View on AliExpress | 2.54 € (50 pcs) |
| 50cm |  |
Nylon thread 1mm |
View on AliExpress | 2.54 € |
| 32cm |  |
Cable Sleeve 6mm |
View on AliExpress | 3.69 € |
| 1 |  |
Wooden base for the PETALOT machine (cut to these dimensions) |
— | — |
| Total: 39.02 € Not included in the total: the wooden base for the PETALOT machine. |
||||
Electronics for PETALOT
| Qty | Image | Component | Link | Price |
|---|---|---|---|---|
| 1 |  |

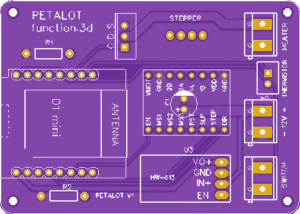

PCB, gerber for PCB fabrication, just upload this zip file to jlcpcb.com and order your PCB. Or buy a ready-made PCB. |
— | — |
| 1 |  |

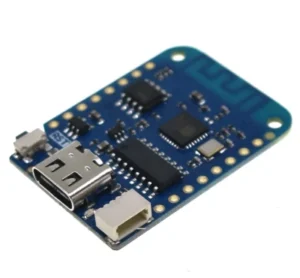

Wemos D1 MINI V4.0 (any other version of WeMos that shares the output pins should work) |
View on AliExpress | 2.99 € |
| 1 |  |

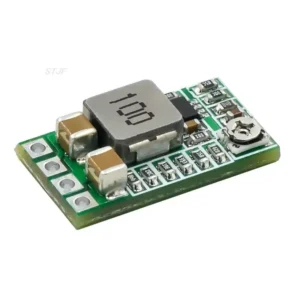

Mini DC-DC 12-24V To 5V 3A Step Down |
View on AliExpress | 4.99 € (10 pcs) |
| 1 |  |

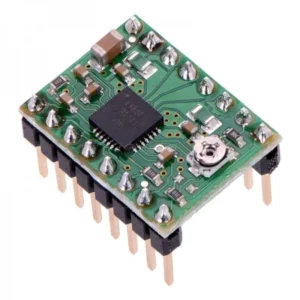

A4988 stepper motor driver+heat sink (It is quite easy to burn it, especially if you are a beginner, better 2 units) |
View on AliExpress | 1.50 € |
| 1 |  |

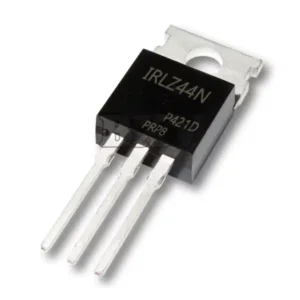

IRLZ44N MOSFET |
View on AliExpress | 3.09 € (10 pcs) |
| 1 |  |

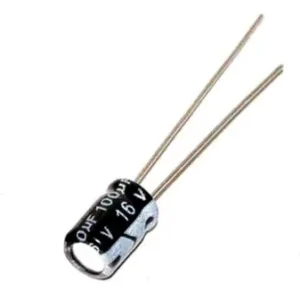

capacitor 16V 100uf |
View on AliExpress | 2.27 € (50 pcs) |
| 1 |  |

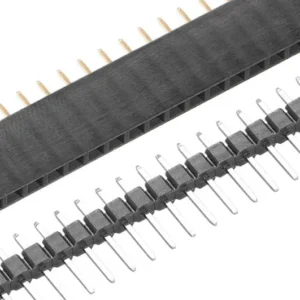

pin header Male and Female |
View on AliExpress | 3.79 € (20 pcs) |
| 3 |  |

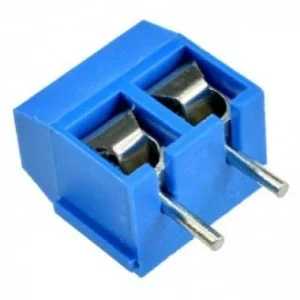

Terminal Block Connector 2P |
View on AliExpress | 0.83 € (10 pcs) |
| 1 |  |

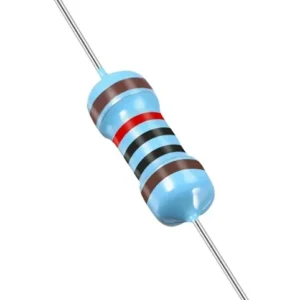

10K ohms resistors R2 |
View on AliExpress | 1.70 € (100 pcs) |
| 1 |  |

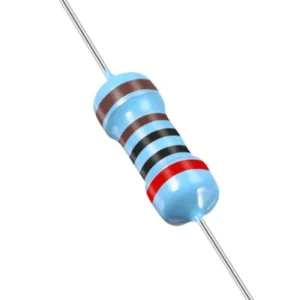

2K ohms resistors for R1 if firmware version >=1.4 |
View on AliExpress | 2.18 € (100 pcs) |
| 1 |  |

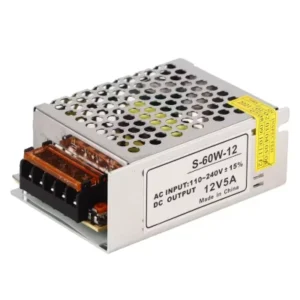

Power Supply 12v 5A |
View on AliExpress | 6.09 € |
| 1 |  |

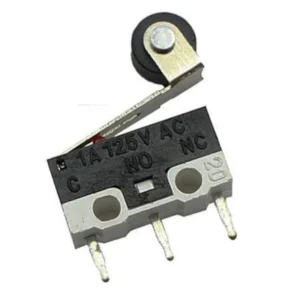

Mini Micro Limit Switch Roller Lever Arm, for strip sensor |
View on AliExpress | 1.89 € (10 pcs) |
| 1 |  |
Nema 17 stepper motor height >=38mm D shaped shaft (17HS4401S-Dupont) |
View on AliExpress | 11.19 € |
| 1 |  |

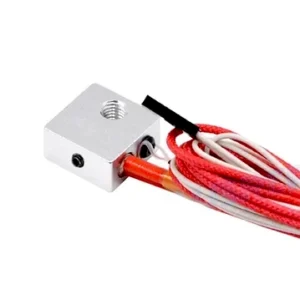

Hotend MK8 12V 40W  |
View on AliExpress | 3.65 € |
| 30cm |  |
Wire 2P 30AWG (for limit switch strip sensor, digital signal, I use the very thin wires stripped from an old LPT1 printer cable) |
View on AliExpress | 0.72 € |
| 25cm | |
Wire 2P 18AWG (I use 25cm from the hotend heater cable) |
View on AliExpress | 1.62 € |
| 1 |  |

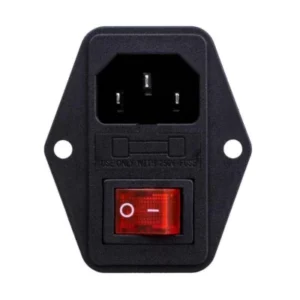

10A 250V Male Power Socket 3 Pin IEC320 switch + Fuse |
View on AliExpress | 2.36 € |
| 9 |  |
Terminal Wire Conector Crimp Insulated Ferrule 20AWG (PCB power, IEC320, heater) |
View on AliExpress | 1.06 € (100 pcs) |
| 2 | |
Terminal Wire Conector Crimp Insulated Ferrule 24AWG (micro switch) |
View on AliExpress | 1.06 € (100 pcs) |
| 5 |  |
4.8mm Female Terminal |
View on AliExpress | 0.94 € (50 pcs) |
| 25mm |  |
Heat Shrink Tube 5mm, for strip sensor and 4.8mm Female Terminal |
View on AliExpress | 1.32 € |
| 40mm | |
Heat Shrink Tube 2mm, for strip sensor |
View on AliExpress | 1.23 € |
| Total: 56.47 € Not included in the total: the PCB (fabricated at JLCPCB). |
||||
Bottle Cutter
| Qty | Image | Component | Link | Price |
|---|---|---|---|---|
| 2 | |
608 RS bearings (I prefer RS instead of ZZ) |
View on AliExpress | 3.69 € (10 pcs) |
| 5 |  |

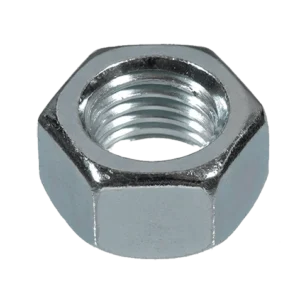

Hex Nut M8 |
View on AliExpress | 2.34 € (10 pcs) |
| 3 |  |

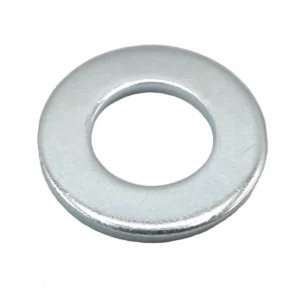

Flat Washer M8x16x1.5 |
View on AliExpress | 1.34 € (10 pcs) |
| 2 | |
M8 Hex Nylon Insert Lock Nut Self-locking Locknut |
View on AliExpress | 3.39 € (20 pcs) |
| 1 | |
M8x50mm Threaded Rod (for high bearing, I use rod thereaded cut to 48mm) |
View on AliExpress | 3.29 € (2 pcs) |
| 2 | |
M8x40mm Threaded Rod (for low bearing and guide, I use rod thereaded cut to 42mm and 30mm) |
View on AliExpress | 3.59 € (3 pcs) |
| 1 | |
48cm M6 Threaded Rod (any 6mm rod will do, 48 cm is more than enough for 8-liter bottles) |
— | — |
| 2 | |
Screw M4 x 35mm (to fix the cutter to a wooden base) |
View on AliExpress | 2.94 € (30 pcs) |
| Total: 20.58 € Not included in the total: the 48cm M6 threaded rod for the Bottle Cutter. |
||||
TOOLS
| Qty | Image | Component | Link | Price |
|---|---|---|---|---|
| 1 |  |
1.7mm drill bit, for the nozzle Tip: It’s sometimes helpful to start by drilling with a smaller bit (1.5 mm) and then finish with the 1.7 mm bit to prevent the hole from expanding to 2 mm |
View on AliExpress | 2.03 € (10 pcs) |
| 1 |  |

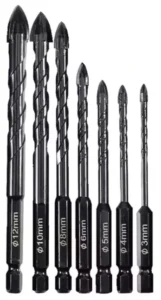

Tile Drill Bits Set for Glass Concrete Ceramic, 8mm, 6mm, for heater block |
View on AliExpress | 5.69 € |
| 1 |  |

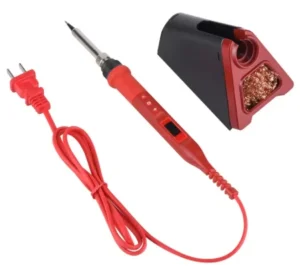

80W Electric Soldering Iron LCD Digital display Temperature Adjustable |
View on AliExpress | 11.19 € |
| 1 |  |
Solder Wire Tin 1mm |
View on AliExpress | 5.59 € |
| 1 |  |

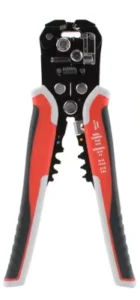

Crimper Cable Cutter Wire Stripper Stripping Crimping Pliers Terminal |
View on AliExpress | 9.19 € |
| 1 |  |
Crimping Pliers Ferrule Sleeves Tubular Terminal |
View on AliExpress | 9.29 € |
| Total: 42.98 € | ||||
